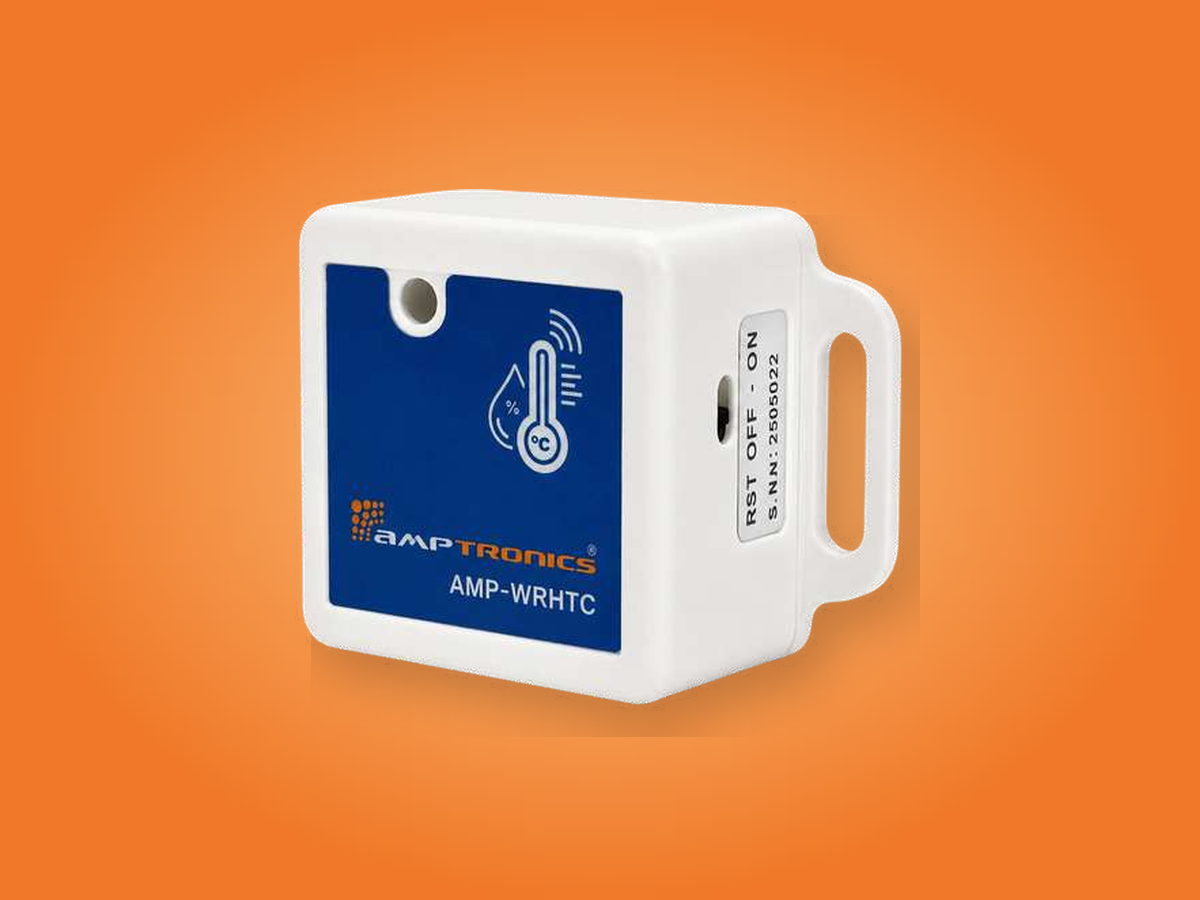

AMP-WRHTC
Ambient Relative Humidity & Temperature Sensor for PanelsAn industrial-grade wireless temperature and humidity sensor for continuous environmental monitoring in electrical and industrial installations. It reports ambient conditions every 60 seconds, so you can stop condensation, corrosion and overheating before they damage equipment.
- Measures ambient temperature and relative humidity every 60 seconds
- Magnetic, strap, screw or 3M adhesive mounting, installed without a shutdown
- 50 m wireless range on multiple frequency bands for global deployment, AES-128 encrypted
- Battery-powered, with a 5-year lifespan and 24/7 monitoring
Continuous environmental monitoring for electrical installations
The AMP-WRHTC measures ambient temperature and relative humidity at 60-second intervals and transmits the data wirelessly to the receiver for real-time monitoring and analysis. All sensor data is encrypted with symmetric AES-128 encryption.
With support for multiple frequency bands, it communicates reliably in different regions around the world. Because it's wireless, readings reach you without opening electrical panels, which improves safety and keeps installation simple.
Continuous environmental data helps you spot problems early, so you can plan maintenance before overheating or excessive humidity leads to a failure.
Flexible, non-intrusive mounting
Choose the mounting that suits each location. Installation can be done without shutting the system down, which makes it ideal for live environments.

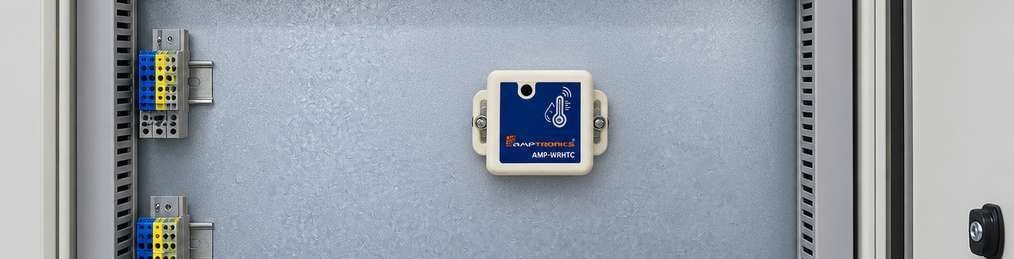

Snaps onto steel panel walls and enclosures.

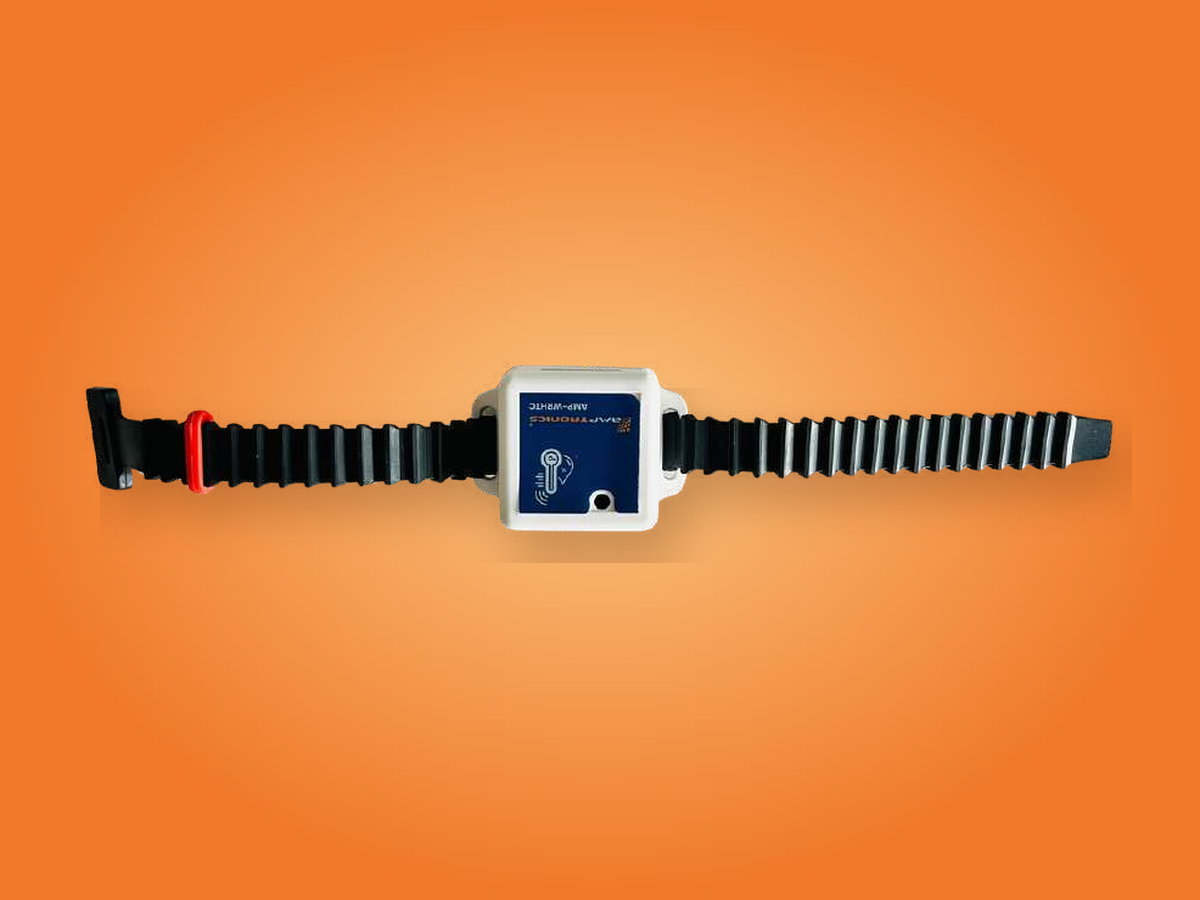

Wraps around cables and round conductors.

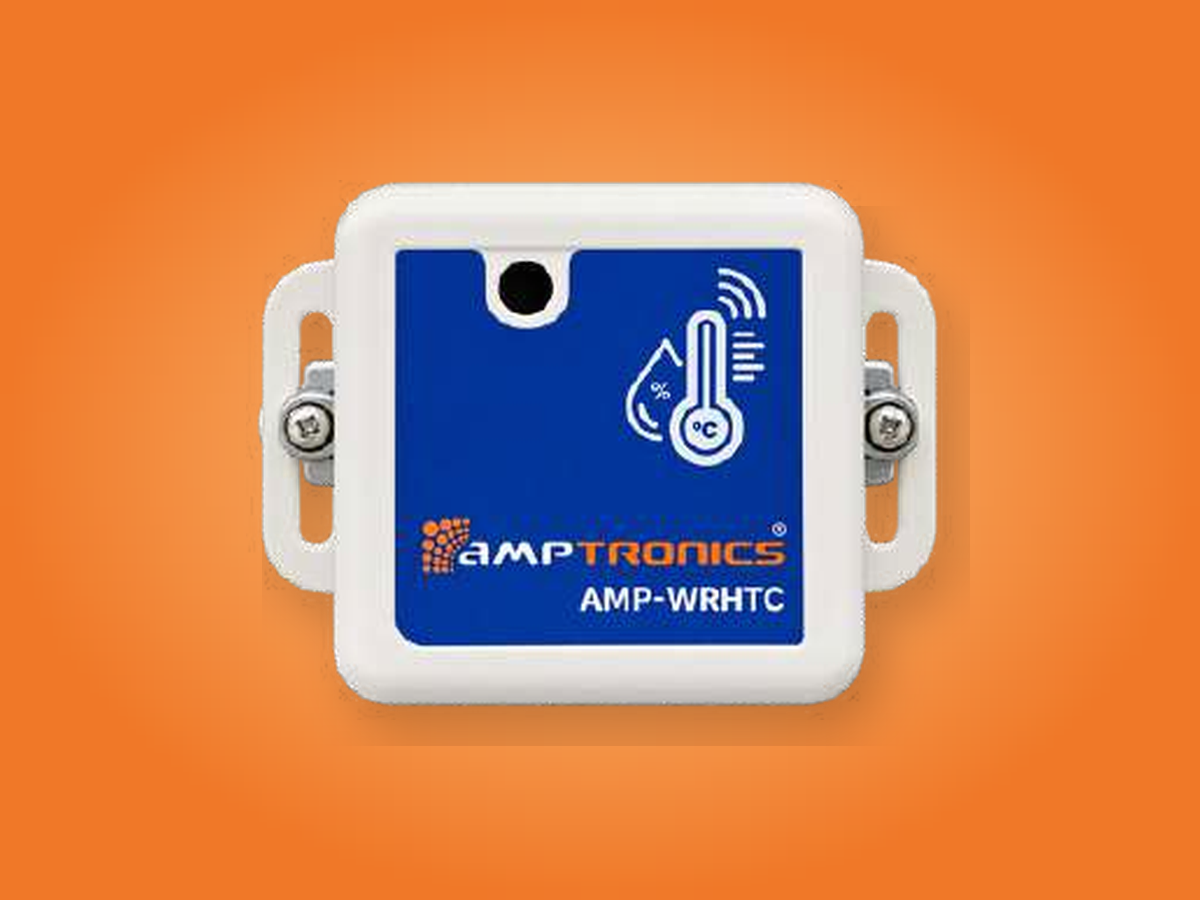

Fixed through the side brackets for permanent installs.
Industrial-grade 3M tape for smooth surfaces.
| General | |
|---|---|
| Model number | AMP-WRHTC |
| Product type | Sensor & RF transmitter |
| Sensors | Digital temperature sensor (internally calibrated) |
| Mounting | Magnetic, strap, screw and adhesive (3M tape) |
| Installation location | Bus ducts, electrical panels, switchgear, MCC panels, control panels |
| Enclosure | PA66 nylon (fire retardant), withstands up to 150°C |
| Battery | 1200 mAh, 3.6 V |
| Battery life | 5 years |
| Measured values | |
| RHT sensor range | Humidity 0–95% RH · Temperature 0°C to 125°C |
| RHT accuracy | Humidity ±2% RH · Temperature ±0.5°C |
| Resolution | Temperature 0.1°C · Humidity 0.1% RH |
| Communication | |
| Communication range | 50 m (wireless) |
| Frequency | 865–867 MHz, 920–923 MHz, 923–926 MHz |
| Transmission interval | 1 minute default, configurable up to 5 minutes through the receiver |
| Antenna | Inbuilt |
| Supported controllers / gateway | BBC969-485RC, BBC969-27C, AMP-IoTG |
| Data encryption | AES-128 |
| Mechanical | |

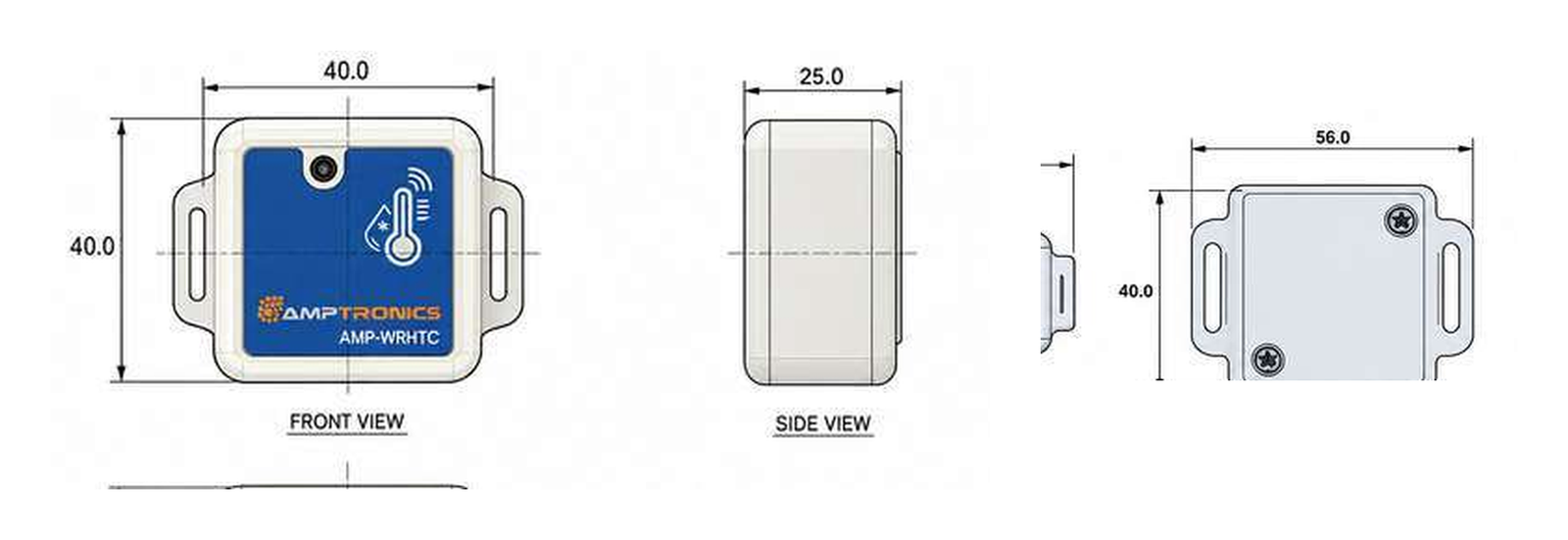

| Dimensions (L × W × H) | 56 × 40 × 25 mm |
| Weight | 30 g |
Value for every team that keeps power flowing
- Continuous visibility of critical electrical assets and connections
- Lower CAPEX and OPEX with less reliance on periodic inspections
- Less need for people to work near energised equipment
- Catch emerging issues before costly failures and downtime
- Better asset performance, reliability and lifecycle ROI
- Extend asset life with condition-based maintenance
- No more manual checks at inaccessible or hard-to-reach points
- Move from reactive to proactive asset management
- Spot abnormal conditions accurately, before they escalate
- Make maintenance decisions on real-time data
- Continuously monitor critical electrical assets
- Detect abnormal conditions before they become critical failures
- Reduce the risk and cost of unplanned outages
- Get real-time alarms when thresholds are exceeded
- Improve reliability with constant visibility of infrastructure health
Supported controllers and gateway
Panel-mount controller with a colour display, buzzer and two alarm relays.
View product
DIN-rail receiver that sends sensor data over RS485 Modbus to SCADA, PLC or BMS.
View product
4G gateway that sends sensor data to the cloud for dashboards and alerts.
